Bluetooth Data Transfer Example

The following example uses the Android Bluetooth APIs to construct a simple peer-to-peer messaging
system that works between two paired Bluetooth devices.
Unfortunately the Android emulator can’t currently be used to test Bluetooth functionality. In order to
test this application you will need to have two physical devices.

1. Start by creating a new BluetoothTexting project featuring a BluetoothTexting Activity.
Modify the manifest to include BLUETOOTH and BLUETOOTH_ADMIN permissions.

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
package="com.paad.chapter13_bluetoothtexting"
android:versionCode="1"
android:versionName="1.0">
<application
android:icon="@drawable/icon"
android:label="@string/app_name">
<activity
android:name=".BluetoothTexting"
android:label="@string/app_name">
<intent-filter>
<action android:name="android.intent.action.MAIN" />
<category android:name="android.intent.category.LAUNCHER" />
</intent-filter>
</activity>
</application>
<uses-sdk android:minSdkVersion="5" />
<uses-permission android:name="android.permission.BLUETOOTH"/>
<uses-permission android:name="android.permission.BLUETOOTH_ADMIN"/>
</manifest>

2. Modify the main.xml layout resource. It should contain a ListView that will display the dis-

covered Bluetooth devices above two buttons — one to start the Server Socket listener, and

another to initiate a connection to a listening server.

Also include Text View and Edit Text controls to use for reading and writing messages across

the connection.

<?xml version="1.0" encoding="utf-8"?>

<RelativeLayout

xmlns:android="http://schemas.android.com/apk/res/android"

android:orientation="vertical"

android:layout_width="fill_parent"

android:layout_height="fill_parent">

<EditText

android:id="@+id/text_message"

android:layout_width="fill_parent"

android:layout_height="wrap_content"

android:layout_alignParentBottom="true"

android:enabled="false"

/>

<Button

android:id="@+id/button_search"

android:text="Search for listener"

android:layout_width="fill_parent"

android:layout_height="wrap_content"

android:layout_above="@id/text_message"

/>

<Button

android:id="@+id/button_listen"

android:text="Listen for connection"

android:layout_width="fill_parent"

android:layout_height="wrap_content"

android:layout_above="@id/button_search"

/>

<ListView

android:id="@+id/list_discovered"

android:layout_width="fill_parent"

android:layout_height="fill_parent"

android:layout_above="@id/button_listen"

android:layout_alignParentTop="true"

/>

<TextView

android:id="@+id/text_messages"

android:layout_width="fill_parent"

android:layout_height="fill_parent"

android:layout_above="@id/button_listen"

android:layout_alignParentTop="true"

android:visibility="gone"

/>

</RelativeLayout>

3.  Override the onCreate method of the BluetoothTexting Activity. Make calls to a collection

of stub methods that will be used to access the Bluetooth device and wire up the UI controls.

public class BluetoothTexting extends Activity {

@Override

public void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.main);

// Get the Bluetooth Adapter

configureBluetooth();

// Setup the ListView of discovered devices

setupListView();

// Setup search button

setupSearchButton();

// Setup listen button

setupListenButton();

}

private void configureBluetooth() {}

private void setupListenButton() {}

private void setupListView() {}

private void setupSearchButton(){}

4.    Fill in the configureBluetooth stub to get access to the local Bluetooth Adapter and store

it in a field variable. Take this opportunity to create a field variable for a Bluetooth Socket.

This will be used to store either the server or client communications socket once a channel

has been established. You should also define a UUID to identify your application when con-

nections are being established.

private BluetoothAdapter bluetooth;

private BluetoothSocket socket;

private UUID uuid = UUID.fromString("a60f35f0-b93a-11de-8a39-08002009c666");

private void configureBluetooth() {

bluetooth = BluetoothAdapter.getDefaultAdapter();

}

5.   Create a new switchUI method. It will be called once a connection is established to enable

the Views used for reading and writing messages.

private void switchUI() {

final TextView messageText = (TextView)findViewById(R.id.text_messages);

final EditText textEntry = (EditText)findViewById(R.id.text_message);

messageText.setVisibility(View.VISIBLE);

list.setVisibility(View.GONE);

textEntry.setEnabled(true);

}

6.

Create the server listener by filling in the setupListenButton stub. The Listen button should

prompt the user to enable discovery. When the discovery window returns, open a Bluetooth

Server Socket to listen for connection requests for the discovery duration. Once a connection

has been made, make a call to the switchUI method you created in Step 5.

private static int DISCOVERY_REQUEST = 1;

private void setupListenButton() {

Button listenButton = (Button)findViewById(R.id.button_listen);

listenButton.setOnClickListener(new OnClickListener() {

public void onClick(View view) {

intent disc;

disc = new Intent(BluetoothAdapter.ACTION_REQUEST_DISCOVERABLE);

startActivityForResult(disc, DISCOVERY_REQUEST);

}

});

}

@Override

protected void onActivityResult(int requestCode, int resultCode, Intent

data) {

if (requestCode == DISCOVERY_REQUEST) {

boolean isDiscoverable = resultCode > 0;

if (isDiscoverable) {

String name = "bluetoothserver";

try {

final BluetoothServerSocket btserver =

bluetooth.listenUsingRfcommWithServiceRecord(name, uuid);

AsyncTask<Integer, Void, BluetoothSocket> acceptThread =

new AsyncTask<Integer, Void, BluetoothSocket>() {

@Override

protected BluetoothSocket doInBackground(Integer . . .params) {

try {

socket = btserver.accept(params[0]*1000);

return socket;

} catch (IOException e) {

Log.d("BLUETOOTH", e.getMessage());

}

return null;

}

@Override

protected void onPostExecute(BluetoothSocket result) {

if (result != null)

switchUI();

}

};

acceptThread.execute(resultCode);

} catch (IOException e) {

Log.d("BLUETOOTH", e.getMessage());

}

}

}

}

7. Now create the client-side connection code. By performing discovery and displaying each

of the possible devices, this code will provide a means for the client device to search for the

listening server.

7.1. Start by creating a field variable to store an Array List of discovered Bluetooth

Devices.

private ArrayList<BluetoothDevice> foundDevices;

7.2.Fill in the setupListView stub. Create a new Array Adapter that binds the List View

to the found devices array.

private ArrayAdapter<BluetoothDevice> aa;

private ListView list;

private void setupListView() {

aa = new ArrayAdapter<BluetoothDevice>(this,

android.R.layout.simple_list_item_1,

foundDevices);

list = (ListView)findViewById(R.id.list_discovered);

list.setAdapter(aa);

}

7.3. Create a new Broadcast Receiver that listens for Bluetooth Device discovery broad-

casts, adds each discovered device to the array of found devices created in Step 7-1,

and notifies the Array Adapter created in Step 7-2.

BroadcastReceiver discoveryResult = new BroadcastReceiver() {

@Override

public void onReceive(Context context, Intent intent) {

BluetoothDevice remoteDevice;

remoteDevice = intent.getParcelableExtra(BluetoothDevice.EXTRA_DEVICE);

if (bluetooth.getBondedDevices().contains(remoteDevice)) {

foundDevices.add(remoteDevice);

aa.notifyDataSetChanged();

}

}

};

7.4 : Complete the setupSearchButton stub to register the Broadcast Receiver from the

previous step and initiate a discovery session.

private void setupSearchButton() {

Button searchButton = (Button)findViewById(R.id.button_search);

searchButton.setOnClickListener(new OnClickListener() {

public void onClick(View view) {

registerReceiver(discoveryResult,

new IntentFilter(BluetoothDevice.ACTION_FOUND));

if (!bluetooth.isDiscovering()) {

foundDevices.clear();

bluetooth.startDiscovery();

}

}

});

}

8.  The final step to completing the connection-handling code is to extend the setupListView

method from Step 7b. Extend this method to include an onItemClickListener that will

attempt to asynchronously initiate a client-side connection with the selected remote

Bluetooth Device. If it is successful, keep a reference to the socket it creates and make a call

to the switchUI method created in Step 5.

private void setupListView() {

aa = new ArrayAdapter<BluetoothDevice>(this,

android.R.layout.simple_list_item_1,

foundDevices);

list = (ListView)findViewById(R.id.list_discovered);

list.setAdapter(aa);

list.setOnItemClickListener(new OnItemClickListener() {

public void onItemClick(AdapterView<?> arg0, View view,

int index, long arg3) {

AsyncTask<Integer, Void, Void> connectTask =

new AsyncTask<Integer, Void, Void>() {

@Override

protected Void doInBackground(Integer . . . params) {

try {

BluetoothDevice device = foundDevices.get(params[0]);

socket = device.createRfcommSocketToServiceRecord(uuid);

socket.connect();

} catch (IOException e) {

Log.d("BLUETOOTH_CLIENT", e.getMessage());

}

return null;

}

@Override

protected void onPostExecute(Void result) {

switchViews();

}

};

connectTask.execute(index);

}

});

}

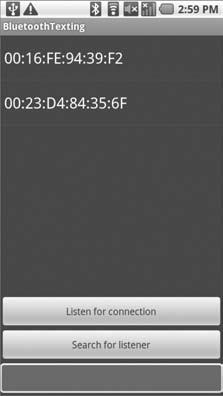

9.  If you run the application on two devices, you

can click the ‘‘Listen for connection’’ button on

one device, and the ‘‘Search for listener’’ button

on the other. The List View should then be popu-

lated with all the bonded devices within range, as

shown in Figure

If you select the other Android device running this

application from that list, a connection will be

established between the two devices. The follow-

ing steps will use this communications channel to

send simple text messages between the devices.

10. Start by extending the switchUI method. Add a

new key listener to the text-entry Edit Text to lis-

ten for a D-pad click. When one is detected, read

its contents and send them across the Bluetooth

communications socket.

private void switchUI() {

final TextView messageText = (TextView)findViewById(R.id.text_messages);

final EditText textEntry = (EditText)findViewById(R.id.text_message);

messageText.setVisibility(View.VISIBLE);

list.setVisibility(View.GONE);

textEntry.setEnabled(true);

textEntry.setOnKeyListener(new OnKeyListener() {

public boolean onKey(View view, int keyCode, KeyEvent keyEvent) {

if ((keyEvent.getAction() == KeyEvent.ACTION_DOWN) &&

(keyCode == KeyEvent.KEYCODE_DPAD_CENTER)) {

sendMessage(socket, textEntry.getText().toString());

textEntry.setText("");

return true;

}

return false;

}

});

}

private void sendMessage(BluetoothSocket socket, String msg) {

OutputStream outStream;

try {

outStream = socket.getOutputStream();

byte[] byteString = (msg + " ").getBytes();

stringAsBytes[byteString.length − 1] = 0;

outStream.write(byteString);

} catch (IOException e) {

Log.d("BLUETOOTH_COMMS", e.getMessage());

}

}

11. In order to receive messages you will need to create an asynchronous listener that monitors

the Bluetooth Socket for incoming messages.

11.1.Start by creating a new MessagePoster class that implements Runnable. It should

accept two parameters, a Text View and a message string. The received message

should be inserted into the Text View parameter. This class will be used to post

incoming messages to the UI from a background thread.

private class MessagePoster implements Runnable {

private TextView textView;

private String message;

public MessagePoster(TextView textView, String message) {

this.textView = textView;

this.message = message;

}

public void run() {

textView.setText(message);

}

}

11.2. Now create a new BluetoothSocketListener that implements Runnable. It should

take a Bluetooth Socket to listen to, a Text View to post incoming messages to, and

a Handler to synchronize when posting updates.

When a new message is received, use the MessagePoster Runnable you created in

the previous step to post the new message in the Text View.

private class BluetoothSocketListener implements Runnable {

private BluetoothSocket socket;

private TextView textView;

private Handler handler;

public BluetoothSocketListener(BluetoothSocket socket,

Handler handler, TextView textView) {

this.socket = socket;

this.textView = textView;

this.handler = handler;

}

public void run() {

int bufferSize = 1024;

byte[] buffer = new byte[bufferSize];

try {

InputStream instream = socket.getInputStream();

int bytesRead = −1;

String message = "";

while (true) {

message = "";

bytesRead = instream.read(buffer);

if (bytesRead != −1) {

while ((bytesRead==bufferSize)&&(buffer[bufferSize-1] != 0)) {

message = message + new String(buffer, 0, bytesRead);

bytesRead = instream.read(buffer);

}

message = message + new String(buffer, 0, bytesRead − 1);

handler.post(new MessagePoster(textView, message));

socket.getInputStream();

}

}

} catch (IOException e) {

Log.d("BLUETOOTH_COMMS", e.getMessage());

}

}

}

11.3.  Finally, make one more addition to the swichUI method, this time creating and

starting the new BluetoothSocketListener you created in the previous step.

private Handler handler = new Handler();

private void switchUI() {

final TextView messageText = (TextView)findViewById(R.id.text_messages);

final EditText textEntry = (EditText)findViewById(R.id.text_message);

messageText.setVisibility(View.VISIBLE);

list.setVisibility(View.GONE);

textEntry.setEnabled(true);

textEntry.setOnKeyListener(new OnKeyListener() {

public boolean onKey(View view, int keyCode, KeyEvent keyEvent) {

if ((keyEvent.getAction() == KeyEvent.ACTION_DOWN) &&

(keyCode == KeyEvent.KEYCODE_DPAD_CENTER)) {

sendMessage(socket, textEntry.getText().toString());

textEntry.setText("");

return true;

}

return false;

}

});

BluetoothSocketListener bsl = new BluetoothSocketListener(socket,

handler, messageText);

Thread messageListener = new Thread(bsr);

messageListener.start();

}
